GTX 1070 assembling PC Cooler Master Mastercase Maker 5

GTX 1070 assembling PC Cooler Master Mastercase Maker 5

INTEL CORE-I7-6700K PROCESSOR

ASUS MOTHERBOARD Z170-PRO GAMING

RAM DDR4 16GB 3200MHZ CORSAIR / GSKIL / KINGSTON

SEAGATE HDD 2TB SATA 7200RPM

SAMSUNG SSD 250GB 850 EVO

DVD R/W 24X SATA

VGA CARD GTX 1070 8GB DDR5

POWER SUPPLY 750WATS 80 PLUS GOLD

CPU COOLER H100 V2 HYDRO COOLING

CASE COOLER MASTER MAKER 5

WINDOWS 10 PROFESSIONAL 64 BIT OEM

FREE CABLE MANAGEMENT WITH DELIVERY

RED LED MOLDING FREE

Make of It What You Will

MASTERCASE MAKER 5

CUSTOMIZE. ADJUST. UPGRADE.

FreeForm™ Modular System

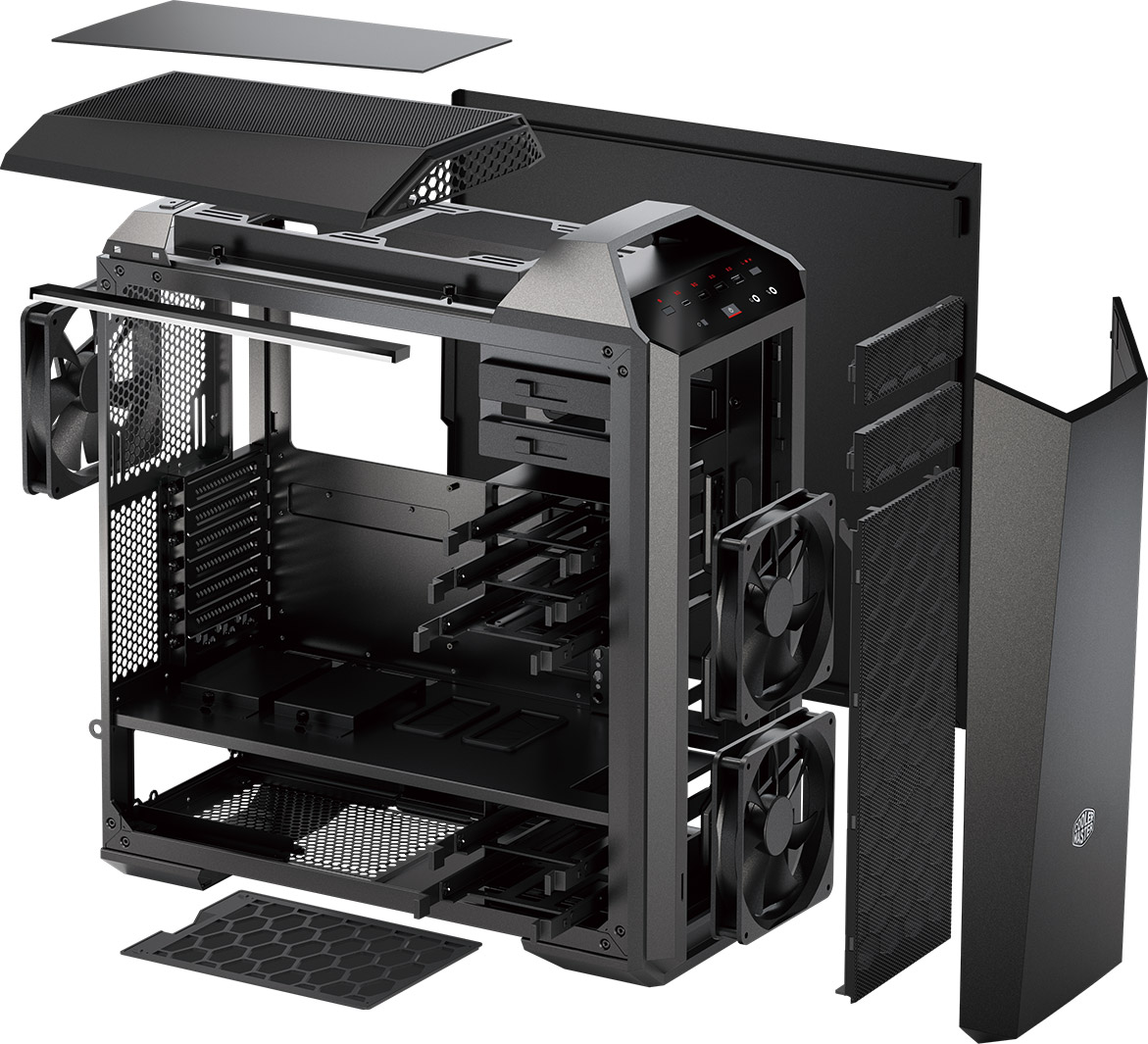

We want you to have absolute control over how your case looks and functions. The FreeForm™ Modular System of the MasterCase lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors.

Customize

TOP COVER WITH PLATE

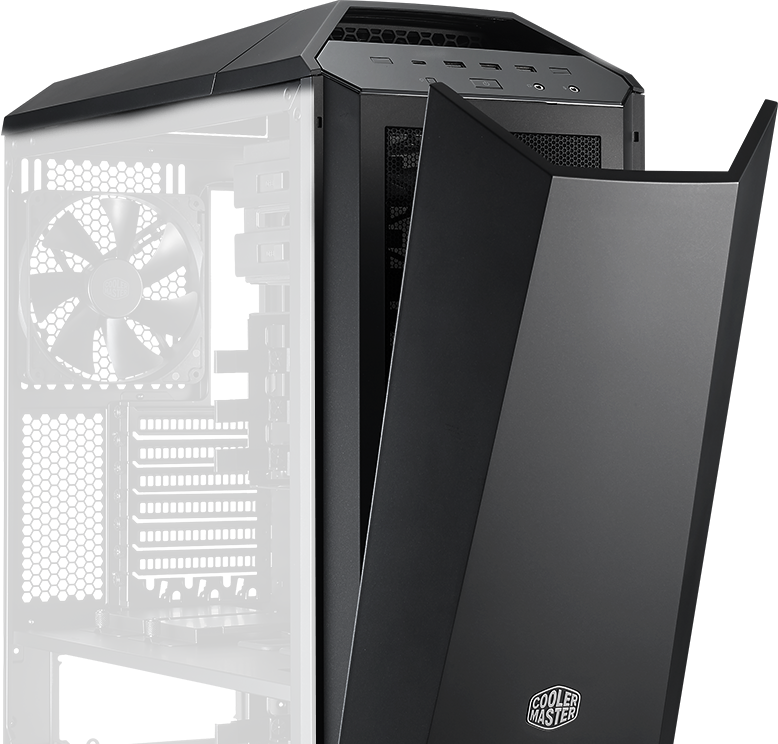

The external modularity allows easy expansion. MasterCase Maker 5 reveals a simple yet modern style with customization options such as a magnetic top cover with plate, a padded front door for sound suppression and an illuminated glossy I/O panel.

DOWNLOAD

Adjust

CLIP-AND-CLICK PANEL

Vertically adjust or entirely remove drive cages for unparalleled flexibility without modifying the internal structure.

Integrate replacement accessories like:

Fan brackets

GPU support brackets

Adjust

UNMATCHED VENTILATION

Enables the option to install three front-mounted 140mfans for a one-of-a-kind build or place a 280mm radiator for liquid cooling support by moving the hard drive trays.

Adjust

Adding to the Clip-and-Click Panel, Slip-and-Clip Pockets and an Unmatched Ventilation system, the adoption of LED & Fan Control Board allows adjustments of fan speeds High (12V) and Low (7V) and LED lighting strip/fan with three modes (on, off, and breathe).

UPGRADE

The MasterCase Maker 5 advances beyond the concept of a standard build by offering the option to completely swap and readjust the case’s form and functionality with multiple interior and exterior outlooks, ample space and customized accessories. It supports a host of different configurations, enabling users to upgrade rather than replace their case. Through FreeForm users can adjust allowing the flexibility to upgrade or build multiple system configurations like home servers, water-cooled workstations, or gaming rigs with dual-slot extra-long graphics cards.

List of Accessories

MASTER MADE

MAKER MADE

MasterCase 5 Series

One-case-fits-all with optional accessories for the MasterCase 5 to fit changing requirements over time. Or get the MasterCase Pro 5 for experienced builders who need the full specs. MasterCase Maker 5 is built for enthusiasts who look for state-of-the-art technology.

Specifications

Model Number		MCZ-005M-KWN00
Dimensions		528.6(L) x 235(W) x 548(H) mm / 20.8(L) x 9.3(W) x 21.6(H) in
Net Weight		12.3kg / 27.2lb
M/B Type		ATX, microATX, Mini-ITX
5.25″ Drive Bays		2
3.5″ Drive Bays		5
2.5″ Drive Bays		2+5
I/O Panel		USB 3.0 x1, USB 3.0 (type C) x1, USB 2.0 x2, Audio In & Out (supports HD Audio)
Expansion Slots		7
Cooling Support	Front	140x25mm fan x2, 1200RPM (pre-Installed) 140 x 25mm fanx1 (optional)
	Rear	140x25mm fan x1, 1200RPM (pre-Installed) 120mm fan x1 (optional)
	Top	120/140mm fan x2 (optional)
Radiator Support	Front	120mm, 140mm, 240mm, 280mm (requires removal of ODD cage)
	Rear	120mm, 140mm
	Top	120mm, 140mm, 240mm, 280mm (max. 297mm radiator length)
Lighting Support		Red LED strip x 1(pre-Installed) 4 LED connections available
Power Supply		Bottom Mount, ATX PS2 (maximum length: 200mm)
Compatibility (Maximum)	VGA card length	412mm/16.22 inch (without 3.5” HDD cage) 296mm/11.7 inch (with 3.5” HDD cage)
	CPU cooler height	190mm/7.48 inch
EAN Code		4719512050224
UPC Code		884102027666

Gallery

•
