ASUS RAMPAGE V EDITION 10 LGA2011 Motherboard
The revered Republic of Gamers (ROG) has delivered exemplary design and performance to thrill the world’s best gamers and PC enthusiasts for a whole decade. But our work has only just begun. Gaming’s glory-seekers have won countless battles with Rampage V Extreme, and we’re ramping up the armory with Rampage V Edition 10 — a unique version of our extreme-gaming motherboard, specialy made to celebrate ROG’s 10th anniversary. To be ROG is to be the rebel. To be ROG is to break every rule. It’s time to be the rebel and break every rule, with Rampage V Edition 10!
- 1Intel® LGA 2011-v3
- 2Extreme Engine Digi+
MicroFine Alloy Chokes
IR3555 PowIRstage® ICs
10K Black Metallic Capacitors - 34 x USB 3.1 ports (10 Gb/s)
2 x Type-C and 2 x Type-A - 4Intel I218-V+Intel I211-at
GameFirst IV
LANGuard - 5Wi-Fi 802.11 ac 2.4/5 GHz
– 3×3 up to 1300Mbps
– Bluetooth v4.0 - 6SupremeFX
Audio line shielding
EMI Cover
Dual dedicated op-amps RC4580
Premium Nichicon® audio capacitors
2VRMS Headphone Output - 74 x PCIe x16 SafeSlot
4-way SLI®/CFX™
- 8OC Zone
– ReTry Button
– LN2 Mode
– Safe Boot
– Slow Mode
– MemOK!
– Start Button
– DRAM CH switch
– Reset Button
– PCIe x16 switch
– ProbeIt - 9DDR4 3333MHz+ (O.C.)
– 8 DIMM, quad-channel
– Supports XMP - 10M.2 Socket with M-Key
– PCIe 3.0 x4 mode - 1110 x SATA 6Gb/s ports
- 1232Gb/s U.2 with NVMe support
- 131 x Aura strip header
BEST
GAMING LIGHTING
Build with Rampage V Edition 10 and you’ll build… BRIGHT! With a built-in Aura RGB-strip header and easy lighting controls, it’s never been easier to light up your rig — and your LAN parties! Rampage V Edition 10 includes the amazing Aura lighting-control utility to cast stunning multi-color glows across your gaming rig, via the motherboard’s powerful built-in RGB LEDs or attached RGB strips, or both — and in perfect synchronization!
AURA LIGHTING CONTROL
Fire up Aura and then enjoy the creative freedom of nine different lighting schemes. You’re even able to sync your lighting style with the ever-growing portfolio of Aura-capable gear.
Static
Always on
Breathing
Fades in and out
Strobing
Flashes on and off
Color Cycle
Fades between the colors of the rainbow
Music Effect
Pulses to the beat of your music
CPU Temperature
Changes color with CPU load
Rainbow
A rolling multi-color glow
Comet
A stream of light with a tail
Flash and Dash
Single-color stepped flashes
AURA 4-PIN AURA RGB-STRIP HEADER
Forget the faff of external RGB controllers! With ROG’s Aura RGB-strip header, it’s quick and easy to cast brilliant colors across your rig and room: just slide standard 12V RGB strips onto the 4-pin Aura RGB-strip header, then weave your lighting any way you like. And, ROG has teamed up with well-known strip-makers and case manufacturers for great synchronized effects and best compatibility — so you’ll light up as easy as RGB wherever you see the Aura Ready logo!
*The Aura RGB-strip header supports standard 5050 RGB LED strips with a maximum power rating of 2A (12V). For maximum brightness, strip length should not exceed 2m.
*One extension cable is included. RGB LED strips need to be purchased separately.
*Learn more about ASUS Aura Ready here.
GAMING
UPSCALED AUDIO
ROG knows sound matters to gamers and streamers, and that’s why we include a front-panel headphone amp that delivers sound exactly how the studio intended — pure, unadulterated audio straight to your ears.
SupremeFX Hi-Fi’s ESS® ES9018K2M digital-to-analog converter (DAC), dual Texas Instruments LM4562 op-amps and TPA6120A2 headphone amp work in harmony to faithfully reproduce every detail without distortion or jitter, so you enjoy audiophile-grade 32-bit/386kHz, and output of over 6VRMS to your favorite 600-ohm headphones. SupremeFX Hi-Fi has a Cirrus Logic analog-to-digital convertor (ADC) for exceptional recording quality and, when you crave excitement over accuracy, fire up ROG’s Sonic Studio suite to apply endless audio enhancements!
1
ESS 9018M2M SABRE DAC:
The digital-to-analog converter with a high signal-to-noise ratio (SNR) and a digital volume control for the purest analog output.
2
PREMIUM NICHICON & WIMA CAPACITORS:
The best components were chosen for every component in the analog stage to mini-mize distortion.
3
LM4562 OUTPUT STAGE:
2 x LM4562 op-amps (one per channel) provide a clean stable volume boost and better channel separation.
4
TPA6120 OUTPUT STAGE:
The TPA6120 headphone amp provides the final boost in volume allowing the amp to unlock the true potential of any headphones.
5
SONIC SENSEAMP:
Automatically detects and optimizes outputs for different headphone impedance (32-600 ohms).
6
HIGH-PRECISION CLOCK SOURCE:
High-accuracy timing technology ensures ultra-low jitter by preventing fluctuating tem-peratures.
7
DE-POP RELAY:
Dedicated relay eliminates the popping sound when the system is powered on or off,or devices are attached or removed.
BEST
OVERCLOCKING ARMORY
Greater performance means smoother gameplay — and that means more chances to win. With the best overclocking (OC) design, UEFI BIOS and intuitive OC gadget and utility, you’ll enjoy unmatched performance — coupled with an exclusive cooling design ensures your system never breaks a sweat.
KING OF OVERCLOCKING
* All world records and global first places were verified on June 8th 2016 on HWBOT. org
UNLEASH THE TRUE PERFORMANCE OF INTEL CORE I7 PROCESSORS FOR LGA 2011-V3 — TODAY AND INTO THE FUTURE!
Let loose up to 10 cores with new Intel® Core™ i7 processors for socket LGA 2011-v3, in both 28— and 40-lane options — and awaken the true multi-threaded performance! Rampage V Edition 10 is engineered from the group up to squeeze every last drop of power from Intel’s latest architecture, so you’ll always be one step ahead!
Testing configuration:
Intel LGA2011-3 i7-6950X | X99-DELUXE II | G.SKILL DDR4-3200 8GB*4 | GTX680-DC2-4GD5*1
DDR4 OVERCLOCKING
STRENGTH IN NUMBERS
Second-generation ASUS T-Topology pushes DDR4 memory overclocking to over 3333MHz with all memory slots populated — and that means the best-ever gaming performance from your Rampage V Edition 10 rig! Featuring a customized trace layout for reduced crosstalk and coupling noise, second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.
OC ZONE
SAVE MORE TIME, BREAK MORE RECORDS
ROG understands overclockers better than any other manufacturer — so Rampage V Edition 10 includes loads of hardware-level controls to aid your overclocking adventures, including DIMM and PCIe switches, Safe Boot and ReTry buttons. They’re quick, easy and real time-savers!
DIMM switch
PCIe x16 lane switch
Safe Boot Button
ReTry Button
MemOK!
ONE CLICK OVERCLOCK AND COOLING, DONE!
GET PERFORMANCE, EFFICIENCY, DIGITAL POWER, FAN CONTROL AND EVEN NETWORKING AND AUDIO TUNING TAILORED FOR YOU — AND THE WAY YOU PLAY!
You don’t need to be an expert to max out gaming performance on your Rampage V Edition 10 build — because 5-Way Optimization sorts all the complex settings with a click, for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
- Stutter is eliminated for smooth-running apps, even under heavy loading.
- Energy waste is reduced so you’ll save money.
- CPU performance boost
- All-round energy efficiency
- Advanced fan controls
- Precise Digital Power Control
- Game faster, rank higher
Cooler by design
Play quieter and cooler with advanced fan and water-pump controls for the ultimate in undisturbed gaming. With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 4 makes sure every fan achieves the best balance of high cooling performance and low noise, so you enjoy all the performance you demand with none of the racket!
Fan connectors
Pump Fan
Thermal sensor
Fan Ext Header
MEDIA-ACCLAIMED UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more gorgeous. Whether you’re a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3Flash the latest BIOS via the internet, and from within the BIOS.
SMARTCheck up your storages devices’ Self-Monitoring, Analysis, and Reporting Technology (SMART) logs to gauge reliability, and even determine if they’re about to fail.
EZ Tuning Wizard — OC and RAIDSelect your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!
My FavoriteQuickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP
Improve your DRAM performance with a click.
SATA Information
View SATA port details for easy device recognition.
Fast Clock Adjustment
Use mouse controls to change the time and date.
Advanced Mode
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
USB UEFI BIOS FLASHBACK
Refresh your BIOS in a flash, even when the system is off
THE FINEST POWER, DIGITALLY CONTROLLED
Extreme Engine Digi+ ROG’s revered digital-power controller now delivers even-finer power, with a custom-designed PWM controller, PowIRstage® IR3555 MOSFETs from Infineon, MicroFine alloy chokes, and 10K black-metallic capacitors — ensuring Extreme Engine Digi+ always delivers the precise and smoothest core voltages!
SPEED YOUR GAME LOADS
ROG’s uniquely-intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it’s activated. RAMCache turns milliseconds into microseconds to boost game-load times to stratospheric levels, and minimizes risk of data loss — and of course it’s compatible with the latest NVM Express storage options!
BEST
GAMING AUDIO
You’d never win with your eyes closed, so open your ears up to the best audio for the battlefield! ROG’s awesome audio expertise is the result of extensive R&D, and SupremeFX is the crystal-clear result — onboard sound as superior as your gaming rep!
CHAMPION-LEVEL AUDIO FROM SUPREMEFX
Rampage V Edition 10’s onboard audio isn’t just good — it’s as good as you can get! You benefit from the best gaming-audio inputs and outputs, with special shielded designs, and a collection of carefully selected professional-grade audio components, including Nichicon capacitors, dedicated dual RC4580 op-amps, and Sonic SenseAmp that automatically detects and optimizes any headset (32-300 ohms) for purest sound quality.
SupremeFX also features intuitive Sonic Studio II, so you’ll apply and enjoy different audio effects for perfect entertainment — plus Perfect Voice noise-cancellation technology for team conversations with total clarity!
SupremeFX shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
SupremeFX audio processor
Ten DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs, and an EMI cover for purer audio quality.
Dedicated dual RC4580 op-amps
Drive some of the very best headphones available, from 32 to 300 ohms, for exceptional gaming-audio and music-listening experiences.
Nichicon capacitors
Deliver the highest-quality sound resolution and expansion for especially warm and natural audio.
INTUITIVE AUDIO-TUNING SUITE SONIC STUDIO II
Casting EnhancerCasting Enhancer improves both streaming and recording audio quality, reducing noise artifacts and stabilizing overall voice volume. It also improves all the rich details and boost bass effect of in-game sounds and music playback.
Perfect VoicePerfect Voice reduces noise during in-game chat so every teammate is heard, and no command is missed.
Sonic StudioOne-click virtual-surround function emulates 7.1 channels, even through a stereo (2.0-channel) headset. It offers five more superb audio controls, including Reverb, Bass Boost, Equalizer, Voice Clarity and Smart Volume — ensuring that everything you hear sounds just amazing.
BEST
GAMING NETWORKING
Lag means lost frags, so Rampage V Edition 10 delivers the sucker punch of superior hardware and software — letting you focus on the game, while your ROG rig lands lag a knock-out blow!
MORE THROUGHPUT AND LESS PROCESSING EQUALS FASTER ONLINE PLAY
INTEL GIGABIT ETHERNET
Rampage V Edition 10 features the very latest dual Intel® Ethernet (I218-V and I211-AT) for faster, smoother gaming — always. Intel’s LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there’s more power for your game and your gameplay.
PUMPED-UP THROUGHPUT. BEST SURGE PROTECTION
LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your Rampage V Edition 10 motherboard’s connection and deliver pumped-up throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges!
FASTEST ONBOARD WI-FI UP TO 1300MBPS
Rampage V Edition 10 has next-level 802.11ac* Wi-Fi with 3×3 dual-band 2.4/5GHz antennas for up to 1300Mbps** transfer speeds.
*Wi-Fi Hotspot use up to 802.11 a/b/g/n. Windows 10 does not currently support Wi-Fi hotspot functionality.
**Actual speed may vary due to networking conditions.
TEAM UP TO BANISH LAG
GAMEFIRST
GameFirst IV optimizes network traffic for faster, lag-free online gaming — and now we’ve added Multi-Gate Teaming to team all your networks for maximum bandwidth and the smoothest-ever gameplay. You’ll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.
MULTI-GATE TEAMING
Team all your network gateways for maximum bandwidth and assign connections to every application for the smoothest-ever gameplay.
BEST
GAMING CONNECTIVITY
Rampage V edition 10 accelerates every connection, with the latest reversible USB 3.1 Type-C and the newest U.2 socket for lighting-speed NVM Express devices — kicking every game into top gear.
Join the NVMe revolution withbuilt-in U.2 connector
Unlock the full potential of your storage with NVM Express (NVMe), the revolutionary specification that lets your SSDs scream at top speed. Just attach your drive to the built-in U.2 connector with plug-and-play ease to experience data-transfer speeds of up to 32Gbit/s — and free up a PCIe slot for another expansion card!
SPEED UP WITH ONBOARD M.2 UP TO 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
ULTIMATE-SPEED 10Gbit/s WITH 4 USB 3.1 ONBOARD
With two USB 3.1 Type-A ports, and two reversible USB 3.1 Type-C, you’ll experience data-transfer speeds of up to 10Gbit/s — or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you’ll be all set for USB 3.1’s breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!
Stacked storage with 10 SATA sockets
Rampage V Edition 10 has more SATA sockets than you’ve ever imagined — with a total of 10 onboard. With so much storage potential, you’ll never run out of space!
BEST
GAMING GRAPHICS
You’ll game as hard, fast and smooth as you demand with Rampage V Edition 10’s support for both 4-Way SLI and CrossFire for multi-GPU graphics grunt, plus Aura-guided illuminated installation!
4-WAY SLI™ /CROSSFIREX™ SUPPORT
Perfect spacing and PCI Express 3.0 speed for incredible graphics! Unleash the full power of multiple graphics cards for visuals that never stutter, with just the right amount of space between each card.
Rampage V Edition 10 has a clever SLI/CFX switch to help you configure your 2-Way or 3-Way graphics cards. Just flip the switch to have Aura’s integrated LEDs guide the way, so you know exactly where to slot your card.
*Enjoy 4-way SLI plus M.2 and U.2 at the same time
BEST
GAMING PROTECTION
As a gamer you demand stability and durability, so ROG integrates long-lasting, premium components, plus exclusive smart DIY designs across the board — ensuring the best gaming experiences.
PRE-MOUNTED I/O SHIELD
Rampage V Edition 10 has something so smart that we’re patenting it — a I/O shield that slots in simply and adds strong protection. But it’s more than function: our patent-pending invention ramps up Rampage V Edition 10 aesthetic credentials, and makes PC DIY easier than ever!
PATENT PENDING SAFESLOT
PROTECT YOUR GRAPHICS CARD INVESTMENT
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new Insert-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Backplate
1
steel electro galvanized backplate that adds extra style, cooling and strength.
CPU Installation Tool
1 layer
protection from socket-pin damage
TrueVolt USB
2 dedicated
USB power supplies delivery rock-steady 5V to all USB ports, minimizing power fluctuations for minimal data loss
ESD Guards
2x greater
2X-greater electrostatic protection than standard. ESD Guards cover the PS2, USB, audio and LAN ports.
Q-connector
1 piece
sorts all front-panel cables
Q-Slot
1 clip
to swap or secure your graphics card
Q-DIMM
1 sided
clips for super-simple, super-secure handling of memory modules
DRAM over-current protection
1 additional
resettable fuse protects connection ports and DRAM against overcurrent and short-circuit damage
ROG GIVES
YOU MORE
STAY IN THE GAME
OVERWOLF
The clever unobtrusive overlay that keeps you in the game, so you can browse, email, IM, stream or record while you play, and all dressed up in color-matched ROG skins to show you’re part of an elite pack — quickly to be available downloaded fromon Overwolf’s app store!
THE FREE KEYBOARD UPGRADE — UPGRADED!
KEYBOT II
Free keyboard upgrade from an exclusive microprocessor and intuitive user interface. Record macros directly from the keyboard, switch profiles in moments, enable special functions with hotkey from F1-F10, start and even boost your PC from shutdown (S5 mode)!
And good news for fighting-game fans: you’ll enjoy one-button directional change!
MODE
You can even use KeyBot II to boost your PC into a specific mode with two-second press
WHAT’S IN THE BOX!
USB stick
1 thumb
drive packed with utilities and drivers
ROG coasters
2 stylish
salvers for your favorite sups
ROG fan stickers
3 badges
of honor for your fans
SLI bridges
3 bridges
for 4-Way, 3-Way and 2-Way SLI configurations
SATA Cables
10 Cables
for greater storage
ROG cable stickers
15 labels
for your cables
AND.. MORE!

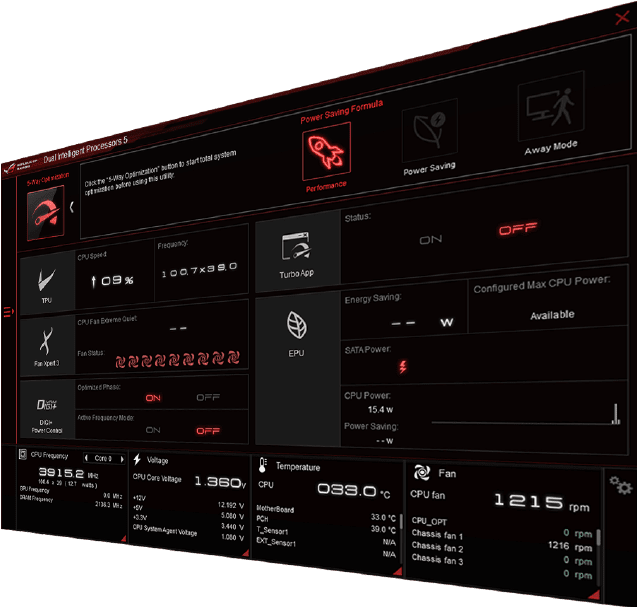

AI Suite 3
One-stop control panel
ROG theme CPU-Z
Shows your important system information with pride
Mem TweakIt
Dynamic timing monitoring, DRAM efficiency gauge
RAMDisk
Boost your favorite applications up to 20X faster than SSD with the junction function.
Sonic Radar II
A stealthy overlay that maps battlefield sounds so you can locate opponents and teammates at a glance.
Kaspersky&red; Anti-Virus (1 year)
The best protection from viruses and spyware
DAEMON Tools Pro Standard (1 year)
The leading tool for optical and virtual discs
PC Cleaner
Accelerate your PC by eliminating clogs with simple click
100% SteamOS support
Play your favorite Steam games now and forever.
Radar on the latest gaming innovations
ROG’s sights are locked on future revolutions and relationships
BEYONDVR READY
Rampage V Edition 10 isn’t just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that Rampage V Edition 10 has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you’ve taken off the headset. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.
AURA READY
ASUS Aura is at the forefront of the RGB revolution, and Aura Ready is your assurance of the best compatibility. All Aura Ready logo gear is ready to work with ASUS Aura-compatible equipment. So, if you want to build with the brightest lighting and the most fascinating effects, look for the Aura Ready badge!
THE POWER OF INTEL
