Friday, 6 September 2013

EVGA GTX 780 HYDRO COPPER---03G-P4-2789-KR

EVGA VGA CARD GTX 780 3GB DDR5-HYDRO COPPER

Looking to maximize your EVGA GeForce GTX 780 experience? The EVGA GeForce GTX 780 with Hydro Copper is the perfect match for any water cooled rig. The Hydro Copper waterblock from EVGA features a swappable inlet/outlet for the maximum in compatibility, and is a full cover, end to end block. A 0.25 x 0.35mm pin matrix provides optimal thermal transfer and ensures the lowest temperatures possible. Get cool performance today with the EVGA GeForce GTX 780 with Hydro Copper.

erformance

NVIDIA GTX 780
2304 CUDA Cores
980 MHz Base Clock
1033 MHz Boost Clock
188.16GT/s Texture Fill Rate

Memory

3072 MB, 384 bit GDDR5
6008 MHz (effective)
288.38 GB/s Memory Bandwidth

Interface

PCI-E 3.0 16x
DVI-I, DVI-D, HDMI, DisplayPort

Resolution & Refresh

240Hz Max Refresh Rate
Max Analog : 2048x1536
Max Digital : 4096x2160

Operating System Support

Windows 8 32/64bit
Windows 7 32/64bit
Windows Vista 32/64bit
Windows XP 32/64bit

Requirements

Minimum of a 600 Watt power supply.
(Minimum recommended power supply with +12 Volt current rating of 42 Amps.)
An available 6-pin PCI-E power connector and an available 8 pin PCI-E power connector
Total Power Draw : 250 Watts

Posted by at No comments:

Wednesday, 17 July 2013

Intel Core i7-3930K Unlocked Processor - Six Core

Intel Core i7-3930K Unlocked Processor - Six Core, 12MB L3 Cache, 1.5MB L2 Cache, 3.20 GHz (3.80 GHz Max Turbo), Socket R (LGA2011), 130W, No Fan,






Posted by at No comments:

Intel Core i7-3970X Extreme Edition Processor - 3.5 GHz

Intel Core i7-3970X Extreme Edition Processor - 3.5 GHz, Six-Core, 15 MB Cache, Socket LGA2011,

StatusLaunched
Launch DateQ4'12
Processor Numberi7-3970X
# of Cores6
# of Threads12
Clock Speed3.5 GHz
Max Turbo Frequency4 GHz
Intel® Smart Cache15 MB
DMI5 GT/s
Instruction Set64-bit
Instruction Set ExtensionsSSE4.2, AVX
Embedded Options Available
No
Lithography32 nm
Max TDP150 W
VID Voltage Range0.6V-1.35V
Posted by at No comments:

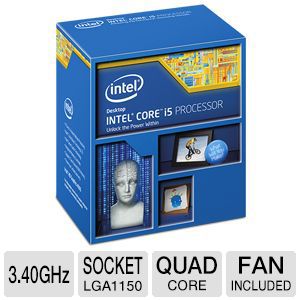

Intel Core i5-4670K Processor

Intel Core i5-4670K Processor - Quad Core, 6MB L3 Cache, 3.4GHz, 84W, Fan, 1200 MHz Graphics Core Speed



Posted by at No comments:

INTEL PROCESSOR I7-4770K

Intel Core i7-4770K Processor - Quad Core, 8MB L3 Cache, 3.5GHz, 84W, Fan, Unlocked Multiplier, 1250 MHz Graphics Core Speed (BX80646I74770K)

StatusLaunched
Launch DateQ2'13
Processor Numberi7-4770K
# of Cores4
# of Threads8
Clock Speed3.5 GHz
Max Turbo Frequency3.9 GHz
Cache8 MB
# of QPI Links1
Instruction Set64-bit
Instruction Set ExtensionsSSE 4.1/4.2, AVX 2.0
Embedded Options Available
No
Lithography22 nm
Max TDP84 W
Thermal Solution SpecificationPCG 2013D
Recommended Customer PriceTRAY: $339.00
BOX : $350.00
Posted by at No comments:

Tuesday, 16 July 2013

CORSAIR POWER SUPPLY-ALL RANGE

CORSAIR POWER SUPPLIES ALL-RANGE
http://www.corsair.com/
Posted by at No comments:

CORSAIR POWER SUPPLY AX1200i

CORSAIR POWER SUPPLY AX1200i


Corsair AX1200i Digital ATX PSU: complete digital control

The revolutionary AX1200i is the first desktop PC power supply to use digital (DSP) control and Corsair Link (learn how to use Corsair Link with AXi Series PSUs) to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX1200i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS® Platinum Efficiency, and clean, stable power.

Real-time monitoring and control with Corsair Link

Put the AX1200i under your control by connecting it directly to a USB header on your motherboard with the included cable, or to a Corsair Link Commander (available separately). Then, download the free Corsair Link Dashboard software for unrivaled power supply monitoring and control options.
Posted by at No comments:

GIGABYTE VGA CARD GTX-TITAN 6GB DDR5

GIGABYTE VGA CARD GTX-TITAN 6GB DDR5
(GV-NTITANOC-6GD-B)


  • Bundle with WINDFORCE 3X 450W Cooling system
  • Powered by NVIDIA GeForce GTX TITAN GPU
  • Integrated with industry's best 6GB GDDR5 memory 384-bit memory interface
  • Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
  • BASE:928MHz / BOOST:980 MHz
  • System power supply requirement: 600W
NEW WINDFORCE 3X 2 SLOT 450W cooling system
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature.
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Up to 4 displays on a Single Card
Posted by at No comments:

GIGABYTE VGA CARD GTX780 OC 3GB DDR5

GIGABYTE VGA CARD GTX780 OC 3GB DDR5
(GV-N780OC-3GD)



  • WINDFORCE 3X 450W Cooling system
  • Powered by NVIDIA GeForce GTX 780 GPU
  • Integrated with industry's best 3GB GDDR5 memory 384-bit memory interface
  • Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
  • BASE:954MHz / BOOST:1006 MHz
  • System power supply requirement: 600W
NEW WINDFORCE 3X 2 SLOT 450W cooling system
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature.
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Up to 4 displays on a Single Card
In the Kepler architecture, support up to four displays on a single card. Satisfy your multi-screen setup, high definition and extreme gaming experience.
8-Phase power Design
Compared to the 6-phase reference design, the GV-N780OC-3GD provides a more stable voltage output while having the MOSFET working at lower temperatures. Moreover, temperature protection and load balance to each MOSFET can effectively extends the graphics card lifehttp://www.gigabyte.com/products/product-page.aspx?pid=4673#ov

Posted by at No comments:

GIGABYTE VGA CARD GTX 760 4GB DDR5

GIGABYTE VGA CARD GTX 760 4GB DDR5
(GV-N760OC-2GD)

  • WINDFORCE 3X Cooling system
  • Powered by NVIDIA GeForce GTX 760 GPU
  • Integrated with 2GB GDDR5 memory, 256-bit memory interface
  • Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
  • BASE:1085MHz / BOOST:1150 MHz
  • System power supply requirement: 500W
Patented "Triangle Cool" Technology
GIGABYTE introduces the latest exclusive "Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the "Triangle Cool" Technology provides a more efficient air flow for the cooling system.
Posted by at No comments:

GIGABYTE VGA CARD GTX-770 4GB DDR5

GIGABYTE VGA CARD GTX-770 4GB DDR5(GV-N770OC-4GD)

  • WINDFORCE 3X 450W Cooling systen
  • Powered by NVIDIA GeForce GTX 770 GPU
  • Integrated with 4GB GDDR5 memory, 256-bit memory interface
  • Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
  • BASE:1137MHz / BOOST:1189 MHz
  • System power supply requirement: 600W
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature.http://www.gigabyte.com/products/product-page.aspx?pid=4647#ov
Posted by at No comments:

Friday, 12 July 2013

ASUS GeForce® GTX 780

ASUS GeForce® GTX 780 gives new hope to hardcore gamers

Powered by GeForce GTX 780

  • 3GB GDDR5 memory for the best gaming experiences in the highest resolutions
  • Dynamic clock speed maximization based on game workload pushes performance to new levels with NVIDIA GPU Boost 2.0 technology
  • GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface

Posted by at No comments:
GIGABYTE MOTHERBOARD GA-Z87X-UD5H
  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 5 Plus Technology
  • All IR Digital Power design
  • GIGABYTE UEFI DualBIOS™
  • 15ยต gold plated CPU socket
  • Multi-GPU Support
  • Durable black solid capacitors
  • GIGABYTE On/Off Charge™ 2 for USB devices
  • Dual Intel® LAN with high ESD Protection
  • New Heatsink design with 7 onboard fan connectors
  • Realtek ALC898 with High Quality 110dB SNR HD audio
  • Onboard Quick Buttons
  • Supports CFOS Speed Internet Accelerator Software
  • 10 USB 3.0 ports
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.http://www.gigabyte.com/products/product-page.aspx?pid=4483#sp
Posted by at No comments:

GIGABYTE MOTHERBOARD GA-Z87X-D3H


GIGABYTE GA-Z87X-D3H Intel® Z87 Chipset
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.

GA-Z87X-D3H (rev. 1.0)
Intel® Z87 Chipset
 | Microsite
  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 5 Plus Technology
  • All IR Digital Power design
  • GIGABYTE UEFI DualBIOS™
  • 15ยต gold plated CPU socket
  • Multi-GPU Support
  • All solid capacitors
  • GIGABYTE On/Off Charge™ 2 for USB devices
  • Intel® LAN with high ESD Protection
  • Supports CFOS Speed Internet Accelerator Software
  • 10 USB 3.0 ports
CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z87 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
    * Support for HDMI 1.4a version.
  4. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In
  5. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
    * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4.

  4. 3 x PCI Express x1 slots
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

  5. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 2-Way AMD CrossFire™/NVIDIA® SLI™ technology (PCIEX16 and PCIEX8)
Storage InterfaceChipset:
  1. 6 x SATA 6Gb/s connectors (SATA3 0~SATA3 5) supporting up to 6 SATA 6Gb/s devices
  2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
USBChipset:
  1. Up to 2 USB 3.0/2.0 ports (available through the internal USB headers)
  2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
  1. Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 6 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 1 x water cooling fan header (CPU_OPT)
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x S/PDIF In header
  11. 2 x USB 3.0/2.0 headers
  12. 2 x USB 2.0/1.1 headers
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
  15. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 6 x USB 3.0/2.0 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    ON/OFF Charge2
    USB Blocker
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Smart Response Technology
  5. cFosSpeed
Operating System
  1. Support for Windows 8/7
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Posted by at No comments:

GIGABYTE Motherboard G1.Sniper 5

GIGABYTE G1.Sniper 5 Motherboard

 GIGABYTE G1.Sniper 5 Motherboard is packed with absolutely everything you'll need to build an uncompromising, high-performance gaming PC. Loaded with advanced audio technologies, dual networking, maxed out multi-card gaming support, advanced cooling and looks that could kill, GIGABYTE G1.Sniper 5 Motherboard is the ultimate choice for serious PC gamers.
G1.Sniper 5 (rev. 1.0)

Intel® Z87 Chipset
 | Microsite
  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 5 Plus Technology
  • All IR digital power design
  • GIGABYTE UEFI DualBIOS™
  • GIGABYTE AMP-UP Audio technology
  • Exclusive Upgradable OP-AMP
  • Onboard Creative Sound Core3D™ quad-core audio processor
  • Built-in Front Audio Headphone Amplifier
  • Audio Noise Guard with LED path lighting
  • 15ยต gold plated CPU socket
  • 4-way Graphics Support
  • Durable black solid capacitors
  • GIGABYTE On/Off Charge™ 2 for USB devices
  • Dual LAN with high ESD Protection
  • Extreme Heatsink design with 9 system fan connectors
  • GIGABYTE Bluetooth 4.0 and Wi-Fi Card
CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z87 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
  1. 2 x HDMI ports, supporting a maximum resolution of 4096x2160
    * Support for HDMI 1.4a version.
  2. 1 x DisplayPort, supporting a maximum resolution of 3840x2160
    * Support for DisplayPort 1.2 version.
  3. Maximum shared memory of 1 GB
Audio
  1. Creative® Sound Core 3D chip
  2. Support for Sound Blaster Recon3Di
  3. High Definition Audio
  4. 2/5.1-channel
  5. Support for S/PDIF Out
LAN
  1. 1 x Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1)
  2. 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n, supporting 2.4/5 GHz Dual-Band
  2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.

  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
    * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)

  3. 3 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
Storage InterfaceChipset:
  1. 6 x SATA 6Gb/s connectors (SATA3 0~5) supporting up to 6 SATA 6Gb/s devices
  2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
Marvell® 88SE9230 chip:
  1. 4 x SATA 6Gb/s connectors (GSATA3 6~9) supporting up to 4 SATA 6Gb/s devices
  2. Support for RAID 0, RAID 1, and RAID 10
USBChipset:
  1. Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
  2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
  1. Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x PCIe power connector
  4. 10 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 7 x system fan headers
  7. 1 x water cooling fan header (CPU_OPT)
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 2 x USB 3.0/2.0 headers
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Clear CMOS jumper
  13. 1 x heatsink LED power connector
  14. 1 x heatsink fan connector
  15. 1 x power button
  16. 1 x reset button
  17. 1 x Clear CMOS button
  18. 2 x BIOS switches
  19. Voltage measurement points
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x HDMI ports
  3. 1 x DisplayPort
  4. 1 x coaxial S/PDIF Out connector
  5. 1 x optical S/PDIF Out connector
  6. 6 x USB 3.0/2.0 ports
  7. 2 x USB 2.0/1.1 ports
  8. 2 x RJ-45 ports
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone/Speaker Out)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/PCH temperature detection
  3. CPU/CPU_OPT/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/CPU_OPT/System fan fail warning
  6. CPU/CPU_OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    ON/OFF Charge2
    USB Blocker
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Smart Response Technology
Operating System
  1. Support for Windows 8/7
Form Factor
  1. E-ATX Form Factor; 30.5cm x 26.4cm
Posted by at No comments:
Subscribe to: Posts (Atom)
